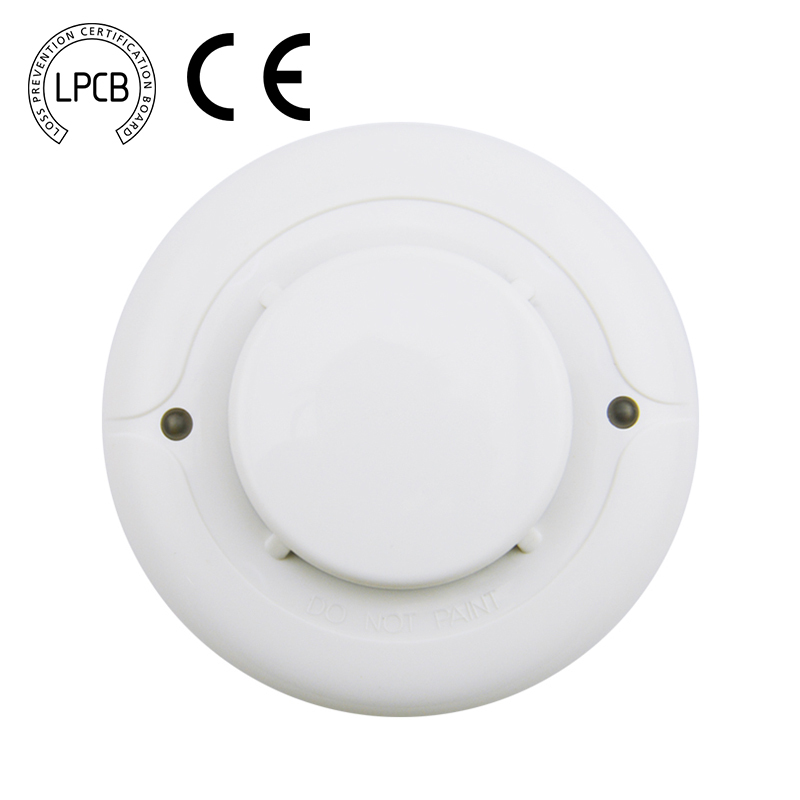

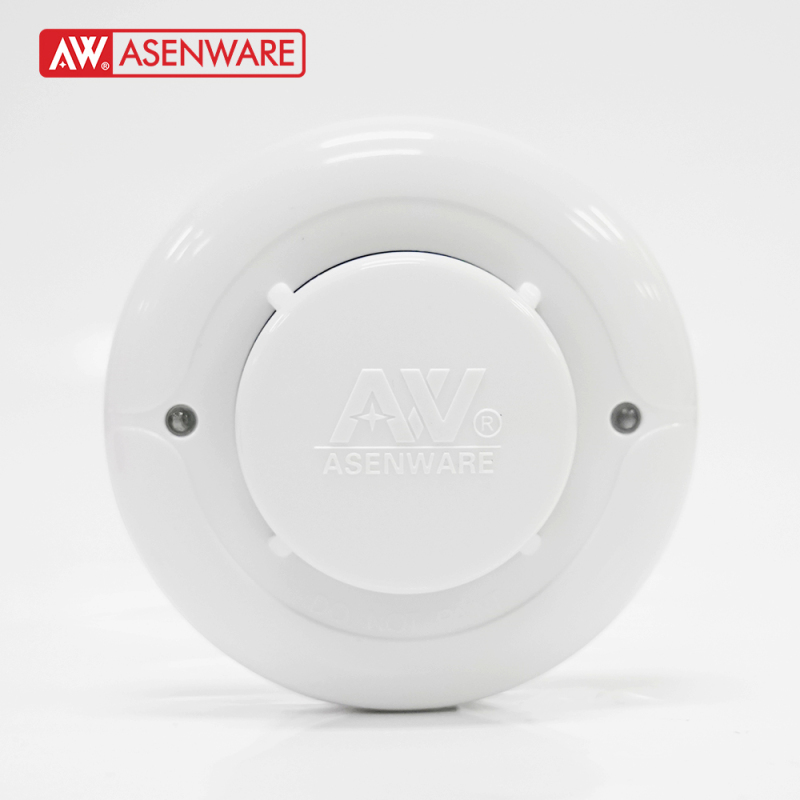

4 wire Conventional fire alarm 60V smoke detector with relay
4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay 4 wire Conventional fire alarm 60V smoke detector with relay
  • 4 wire Conventional fire alarm 60V smoke detector with relay
  • 4 wire Conventional fire alarm 60V smoke detector with relay
  • 4 wire Conventional fire alarm 60V smoke detector with relay

4 wire Conventional fire alarm 60V smoke detector with relay

Item No.: AW-CSD381-4W 60V
The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 60VDc with relay uses a state of the art optical sensing chamber.
Add to Inquiry
Description
Description
The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 60VDc with relay uses a state of the art optical sensing chamber. This detector is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturers.

Features
1.Surface mounting
2. LED indicator
3.Complete functional test with every activation
4. Meets all requirements of latest EN54-7:2001

Technical Specification
Main Voltage 9～24VDC or 24～60VDC
Operating current(@ 60VDC) NO Standby current≤1.2mA, Alarmcurrent≤8mA
NC Standby current≤5mA, Alarmcurrent≤4mA
Application For indoor use only
Wiring Terminal 6: DC Input Terminal 5: DCInput
Terminal 3: Alarm output Terminal 2: Alarm output
Smoke Alarm Sensitivity 0.18 to 0.3 dB/m
Environmental Class A temperature range: -10 to 50°C(14~122°F)
Humidity: 5 to 95% RH, non-condensing
Protection class IP30
